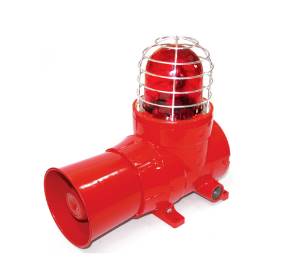

GTL-200
- Product Type : LED Lens / Rotating Reflection
- Material : Body : ALDC12, Reflector : heatresistant ABS
- Lamp Lens : heat-resistant PC, GLASS : Explosion-proof Tempered glass, Protection case – SS316L
- Sounder out put : MAX 120dB
- LED Color : Green, Red, Yellow, Blue (Choose 1)
- Power Supply : AC110 / 220V 50~60Hz DC12~48V
- Power Consumption : AC110V=0.327A / 220V = 0.163A MAX
- DC12V = 3.0A / DC24V=1.5A / DC48V = 0.75A MAX
- Operation Temp : T6=-40 to 60℃ / T5,T4=-40 to 70℃
- Operation Humidity : 0 to 95% RH (Non-condensing)
- Conduct Connection : 1/2″ or 3/4″ PF, NPT(3/4″PF standard feature)
- Dimensions : 164(W) X 278.5(H) X177(D) mm
- Weight : App. 6.2kg
- Approval : Explosion proof type (Ex d IIC T4,T5,T6) KCs / IP66
