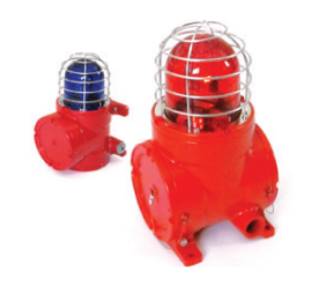

GTL-200L
- Product Type : LED Lens / Rotating Reflection
- Material : Body : ALDC12, Reflector : heatresistant ABS
Lamp Lens : heat-resistant PC, GLASS : Explosion-proof Tempered glass, Protection case – SS316L - LED Color : Green, Red, Yellow, Blue (Choose 1)
- Power Supply : AC110 / 220V 50~60Hz DC12~48V
- Power Consumption : AC110V=0.109A / 220V = 0.054A MAX DC12V = 1.0A / DC 24V=0.5A / DC48V = 0.25A MAX
- Operation Temp : T6=-40 to 60℃ / T5,T4=-40 to 70℃
- Operation Humidity : 0 to 95% RH (Non-condensing)
- Conduct Connection : 1/2″ or 3/4″ PF, NPT(3/4″PF standard feature)
- Dimensions : 164(W) X 278.5(H) X177(D) mm
- Weight : App. 5.0kg
- Approval : Explosion proof type (Ex d IIC T4,T5,T6) KCs / IP66
- Explosion proof type(Exd T4,T5,T6) ATEX, IECEX, CE
